Espresso Extraction Pressure: What 9 Bar Actually Means for Your Commercial Coffee Setup in India (2026)

Every commercial espresso machine spec sheet lists 9 bar extraction pressure as a standard feature — but pressure is the most misunderstood specification in commercial espresso, and most café operators have never been told what it actually controls, what goes wrong when it is inconsistent, or how to use it as a diagnostic tool when shots behave unexpectedly. This guide covers all of it in practical, commercial terms.

A café owner in Bhopal called us convinced his new machine was faulty. Shots were extracting unevenly — the right group was producing consistent 27-second extractions, while the left group on the same machine was consistently running to 31–32 seconds at the same grind setting. The team had been adjusting the grinder for the left group separately, creating two different grind settings for the same machine. The assumption was a temperature issue. When a technician measured actual extraction pressure at each group, the left group was reading 10.8 bar at the pump — nearly 2 bar higher than the right group due to a partially blocked OPV (over-pressure valve) on that circuit. The excess pressure was compacting the coffee puck more aggressively, creating resistance that slowed the extraction. No amount of grind adjustment would have solved a pressure problem. Understanding what 9 bar means — and what deviation from it causes — would have diagnosed this in an hour rather than three weeks.

What 9 Bar Pressure Actually Does Inside the Coffee Puck

When an espresso machine activates and water reaches the group head, it arrives at the coffee puck at a specified pressure. That pressure does several things simultaneously that define the character of the extraction.

Pressure forces water through the coffee bed. Ground coffee packed into a portafilter basket creates resistance to water flow. The pump must generate enough pressure to overcome that resistance and push water through the grounds at a rate that allows sufficient contact time for extraction. At 9 bar, the flow rate through a correctly dosed and tamped 18g dose produces approximately 25–30 seconds of extraction time from first drip to target yield — the window where the majority of desirable espresso compounds are extracted in balanced proportion.

Pressure creates emulsification. The 9 bar pressure physically forces coffee oils — which are not water-soluble — into the liquid stream as an emulsion, creating the characteristic body and mouthfeel of espresso that no other brew method replicates. Lower pressure (below 7–8 bar) produces insufficient emulsification — the cup is thin, lacks body, and tastes closer to concentrated filter coffee than espresso. This is why pressure specification is not an arbitrary standard — it is the physical condition that makes espresso what it is in the cup.

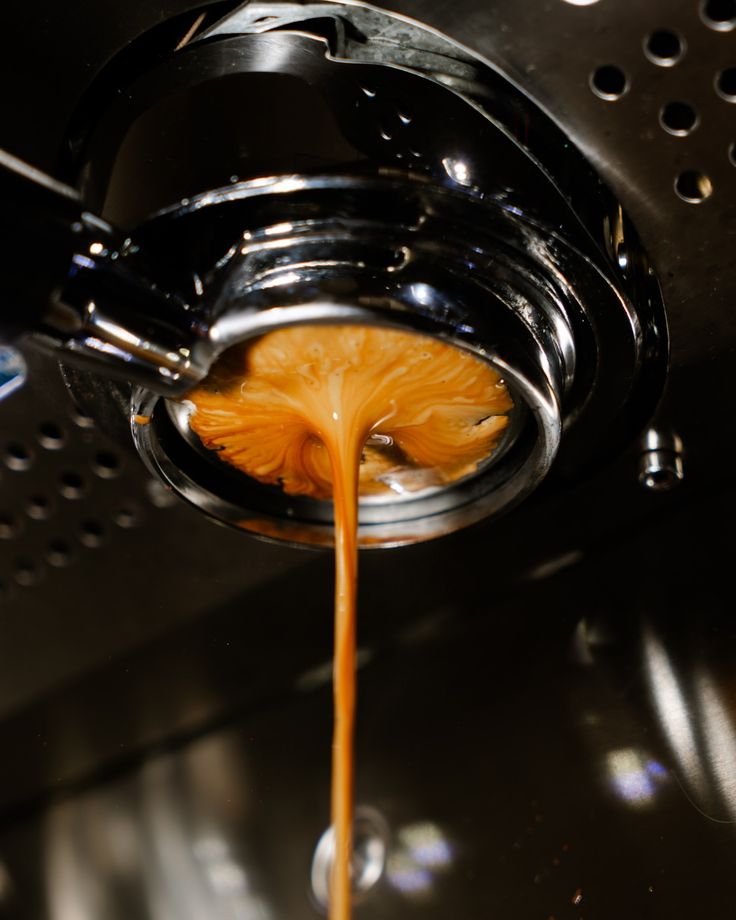

Pressure affects crema formation. Crema — the golden-brown foam layer on well-extracted espresso — forms when carbon dioxide dissolved in the coffee grounds is forced into solution under pressure and then releases as bubbles when the pressure drops at the portafilter spout. At 9 bar with fresh beans, crema is abundant and persistent. At inconsistent or low pressure, crema is thin, pale, or dissipates immediately. Coffee roasted and supplied for commercial espresso use — like Coffee.Plus's Classico and Jolt blends from their commercial wholesale range, both calibrated for consistent behaviour under 9 bar extraction — produces reliable crema when pressure is consistent. The same coffee on a machine running 7 bar will look and taste noticeably different from the same bean at a correctly calibrated 9 bar.

Why Pressure Consistency Matters More Than Maximum Pressure

The specification "9 bar" on a commercial espresso machine describes the target operating pressure — the pressure the pump is calibrated to maintain during extraction. In practice, the quality of the machine's pump and pressure management system determines how closely and how consistently that 9 bar target is maintained across every shot, under every operating condition.

Pressure stability during simultaneous extractions is the most commercially relevant performance dimension of pump quality. When a 2-group machine pulls two shots simultaneously, both groups are drawing from the same pump. A pump that cannot maintain 9 bar at each group under simultaneous load — dropping to 7.5 or 8 bar across both circuits — produces under-extracted shots during peak service. This is a pump capacity issue, not a grind or dose issue, and it is one of the most common causes of quality inconsistency during rush hour that café teams attribute to technique or temperature.

Vibration pump vs rotary pump is the specification distinction that determines pressure consistency under commercial load. A vibration pump — found on entry-level commercial and prosumer machines — generates pressure through electromagnetic vibration of a piston. It is capable of reaching 9 bar and is entirely adequate for single-group or low-volume use. Its limitation is pressure stability under simultaneous demand and sustained high-volume use — vibration pumps show more pressure variance during back-to-back shots.

A rotary pump — the standard on properly specified commercial machines including the Espressa Falcon, Espressa ES.One, and Izensso Raptor — uses a rotating vane mechanism that generates consistent, smooth pressure with significantly lower variance under simultaneous and sustained extraction load. The rotary pump's pressure curve is flatter — it holds 9 bar across both groups, across consecutive shots, and across a 3-hour service window with the stability that a vibration pump cannot match at comparable volume. For the best espresso machine for a 50-seat café in India where peak service involves back-to-back 2-group extractions, rotary pump architecture is not optional — it is the mechanical foundation of pressure consistency across service.

The OPV: The Component That Sets the Actual Pressure

The OPV — over-pressure valve — is a small but critical component that governs actual extraction pressure independent of what the pump is capable of generating. Commercial rotary pumps typically generate 11–12 bar of raw pressure. The OPV is a spring-loaded bypass valve calibrated to open at the target extraction pressure — usually 9 bar — and route excess pressure back to the water reservoir, preventing the brew circuit from exceeding the set point.

What this means practically: The pump generates pressure; the OPV determines the extraction pressure the coffee actually experiences. If the OPV spring weakens over time or is incorrectly set, extraction pressure deviates from 9 bar without any change in pump behaviour. A weakened OPV allows higher pressure to reach the group head — the scenario in the Bhopal café described above. A stuck or partially blocked OPV can hold pressure below the set point, producing under-extracted shots that look and taste like a grind problem.

OPV calibration verification is part of every professional service visit. It is not a user-adjustable parameter on most commercial machines — it requires a gauge and, on most machines, a screwdriver and qualified technician to adjust correctly. Operators who suspect pressure-related extraction inconsistency should request OPV pressure measurement as a specific diagnostic step.

When Adjustable Pressure and Pressure Profiling Provide Real Workflow Advantages

The standard 9 bar flat pressure profile — consistent pressure from the beginning to the end of extraction — is well-matched to medium and dark roast commercial blends, which have high solubility and respond predictably to constant pressure across the extraction window.

Light roast single-origin coffees — increasingly prominent in Indian specialty cafés featuring Araku arabica, Chikmagalur naturals, or imported Ethiopian and Colombian beans — behave differently at pressure. Their intact cell structure means they are more susceptible to channelling at full 9 bar pressure from the first second of extraction, particularly in the dry pre-infusion phase before the coffee puck is fully saturated.

Pre-infusion — a low-pressure or zero-pressure phase at the start of extraction that allows the coffee puck to saturate before full pressure is applied — directly addresses this. Pre-infusion reduces channelling risk, creates a more even extraction front through the puck, and produces more consistent results across coffees with variable particle distribution. On machines like the Espressa Falcon with programmable pre-infusion sequences, the pre-infusion duration and pressure can be set per recipe — meaning a light Ethiopian natural and a dark commercial blend can each have an optimised pressure profile stored independently on the same machine. This is the workflow advantage that pressure profiling provides: not one universally better pressure, but the right pressure trajectory for each specific coffee on the menu.

Pressure profiling beyond pre-infusion — active manipulation of pressure across the full extraction timeline — provides the deepest extraction control and is the domain of premium commercial machines including the Dalla Corte Studio with Digital Flow Regulation (DFR). DFR allows real-time flow and pressure adjustment during extraction, enabling baristas to shape the extraction curve in response to what they observe. For a roastery café showcasing Indian specialty lots or rare single-origins, this level of control allows each coffee to be extracted on its own terms rather than a standardised pressure template.

Troubleshooting Pressure-Related Shot Problems Without Calling Service

Many pressure-related extraction problems can be diagnosed and attributed correctly by café teams with basic knowledge, before a service call is necessary.

Shots running fast and thin (under 20 seconds):

If the grind setting is confirmed at the correct calibrated position, fast extractions can indicate low extraction pressure — the water is not meeting sufficient resistance from the coffee bed because pressure is below target. Confirm by checking if both groups show the same behaviour (OPV or pump issue) or only one group (that group's solenoid or OPV).

Shots running slow and bitter (over 35 seconds):

If grind setting is confirmed correct, very slow extractions can indicate excessive pressure compacting the puck beyond normal resistance. Check OPV setting at the next service visit, particularly if the slow extraction appeared suddenly rather than gradually. Gradual slowing over weeks is more likely to be a grind or scale issue.

Uneven crema or pale/thin crema at correct extraction time:

This indicates pressure is present but inconsistent — typical of a pump reaching the end of its service life or an OPV that is partially stuck open and allowing pressure bleed. Also check bean freshness — Coffee.Plus wholesale blends like Classico and Flair are supplied with roast dates specifically so operators can confirm their beans are within the optimal CO2 release window for crema formation.

Pressure spike at shot start then drop:

This is a pump priming issue in some vibration pump machines, or an indication that the rotary pump has air ingress from a water line connection. Purge the group head for 5–10 seconds before extraction — if the spike-and-drop pattern persists, it warrants a technician visit.

Pressure Specifications Across Commercial Espresso Machine Tiers

Mistakes to Avoid: Adjusting the Grinder for a Pressure Problem

Mistake: Compensating for inconsistent shot timing by continuously adjusting the grinder when the root cause is a pressure deviation.

Grind adjustment changes the coffee bed resistance — it is a valid response to many extraction timing issues. It is not a valid response to a pump or OPV pressure problem. A grinder adjusted finer to slow down shots on a group running high pressure creates a situation where that grinder setting is wrong for any group running correct pressure. When the pressure problem is later corrected, the grind is now too fine and shots run too slow. The team adjusts again. The underlying pressure issue gets obscured by a layer of grind compensations that make diagnostics significantly harder.

The discipline to distinguish between a grind problem and a pressure problem — using the diagnostic logic above — prevents this chain of compensatory adjustments. When both groups on the same machine extract differently at the same grind setting, the problem is almost certainly pressure, not the grind.

At Coffee.Plus, pressure calibration is part of every installation and every AMC visit — not something left to chance or the barista's interpretation of shot timing. Every commercial machine we supply, from the Espressa Base to the Izensso Raptor and Dalla Corte range, is pressure-verified at installation using a portafilter gauge, and OPV calibration is documented in the machine's service record from day one. Pan-India technician support means pressure diagnostics are available wherever your café is located, with technicians who understand the difference between a grind adjustment and a service call. Our coffee wholesale range — including the Classico, Jolt, and Flair blends available for commercial accounts — is calibrated for 9 bar extraction consistency, so you are working with beans designed for your pressure specification rather than against it. For espresso machine installation and training in India with full pressure setup included, our Experience Centre in Delhi at 14 Regency, Asola is where the complete technical conversation begins.
